PDF to Word layout test: columns, tables, images, and orientation
A controlled two-page PDF asked the converter to infer editable structure from positioned text, drawn rules, one raster image, two columns, and a landscape matrix. The result retained the content but added a page and moved one block.
Controlled test result
Core content survived, but the two-page PDF became a three-page DOCX
What the fixture tested

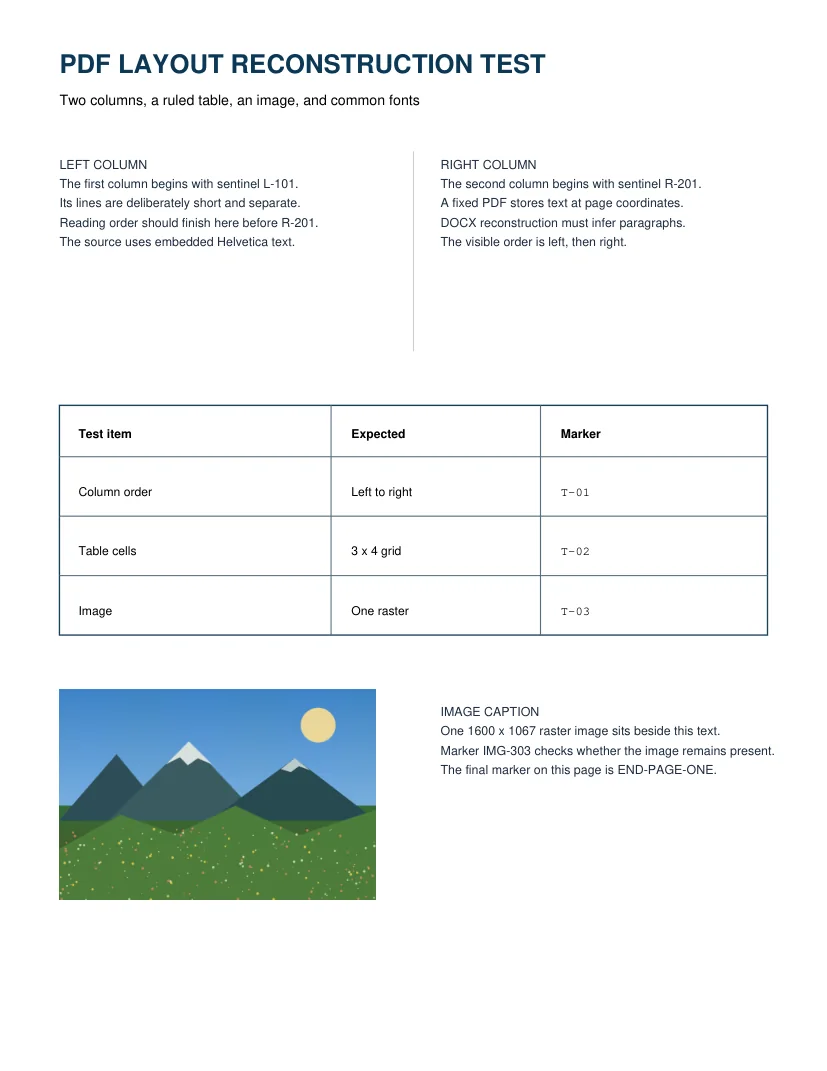

Page one contains two visually separated text columns, a ruled 3 x 4 matrix, an embedded 1600 x 1067 image, and caption text beside that image. Page two changes to landscape and contains a wide 4 x 7 matrix with unique cell markers. The PDF is 863,569 bytes, contains 121 extracted words on page one and 44 on page two, and uses Helvetica, Helvetica Bold, Courier, and Times Roman.
The fixture was generated with PyMuPDF 1.28.0, converted through the current Converttwo PDF-to-Word endpoint with pdf2docx 0.5.13, inspected as OOXML, and rendered with LibreOffice 26.2.5.2. The output DOCX is 885,912 bytes. The repository’s deployment dependency remains pinned to pdf2docx 0.5.8, so this report identifies the exact local test environment rather than implying byte-identical results everywhere.

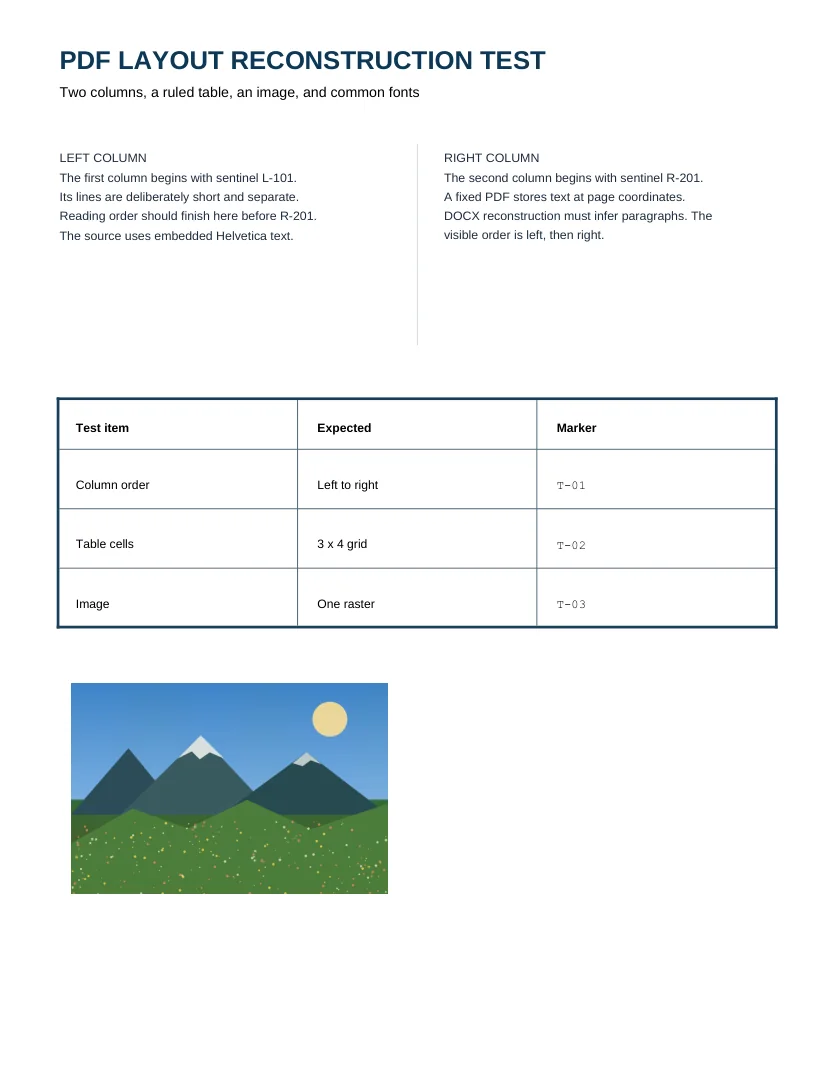

Page one retained columns, table, and image, but moved the caption
The left-column and right-column sentinel strings remained, and visual reading order was still left then right. The ruled matrix became an editable table. The image remained present and moved approximately 9 points right and 5 points upward. Its caption did not disappear: it flowed to the new second portrait page.

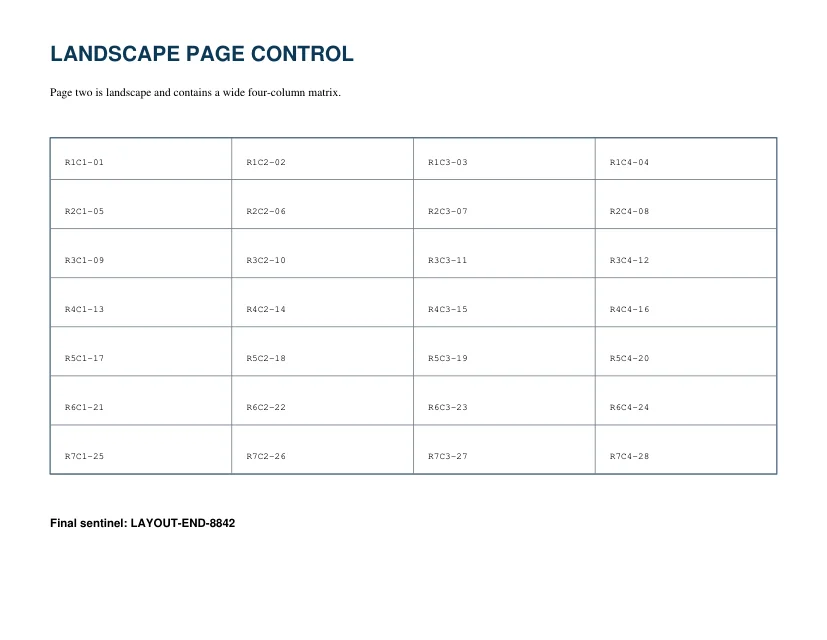

The landscape matrix stayed landscape after an inserted page

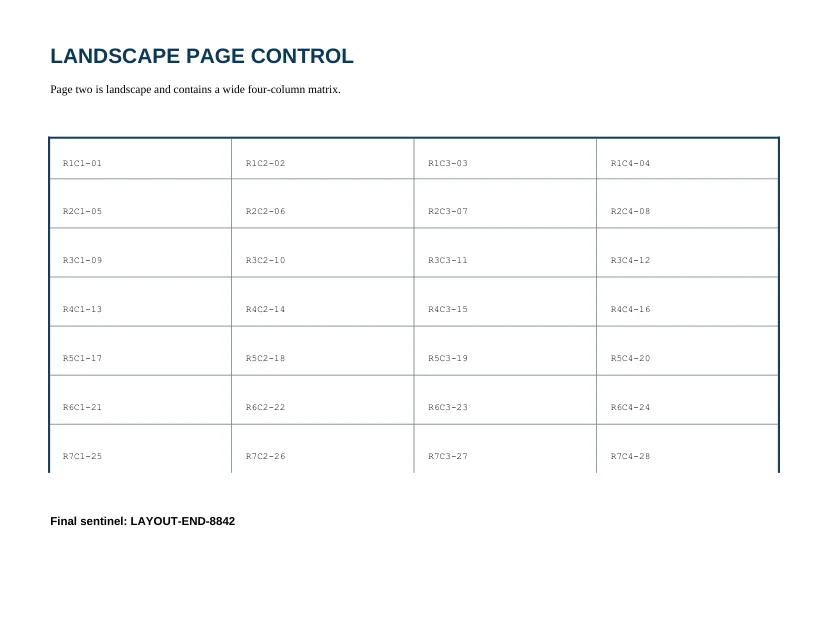

The landscape page’s width and height remained 792 x 612 points, but it became page three. The matrix content remained in its original row-major order. The bottom border of the reconstructed matrix was not visible in the rendered DOCX, which is another reason to inspect table edges instead of checking only text.
Measured source and output
| Check | Source PDF | Converted DOCX or rendering |
|---|---|---|
| File size | 863,569 bytes | 885,912-byte DOCX; 134,627-byte comparison PDF |
| Page count | Two | Three after rendering |
| Page geometry | 612 x 792 pt; 792 x 612 pt | 612 x 792 pt; 612 x 792 pt; 792 x 612 pt |
| Text | 165 extracted words across two pages | 165 extracted words across three rendered pages |
| DOCX structure | Fixed PDF objects | 14 paragraphs, three tables, one inline image, four sections, 1,032 text characters |
| Page-one visual difference | Reference | 14.57% of pixels changed at 108 ppi; mean absolute channel error 9.774 |
Downloads, interpretation, and limits
This result is useful when editability matters more than fixed pagination: text, matrices, image, page orientation, and unique markers were recoverable. It is not a faithful two-page replacement because the caption’s movement changed pagination and the landscape table lost a visible edge. Retain the PDF as the visual reference and treat the DOCX as an editable draft.
The generated PDF uses clean common fonts and deliberate spacing. It does not contain footnotes, forms, equations, transparency groups, floating PDF annotations, or damaged objects. One conversion cannot predict every layout, and the local test dependency differs from the production pin.
Convert for editing, then compare
Review page count, moved blocks, orientation, table edges, and reading order before using the DOCX.
